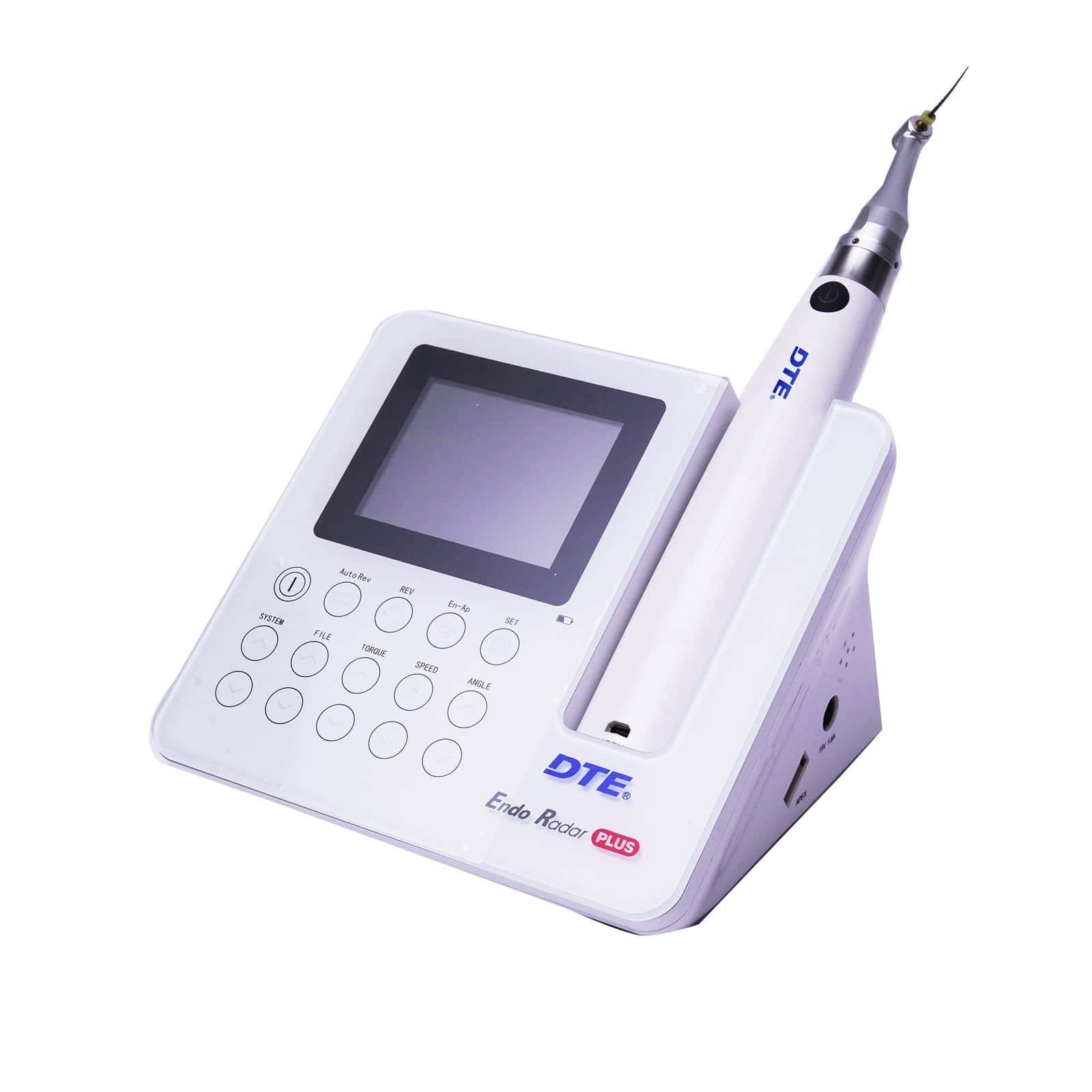

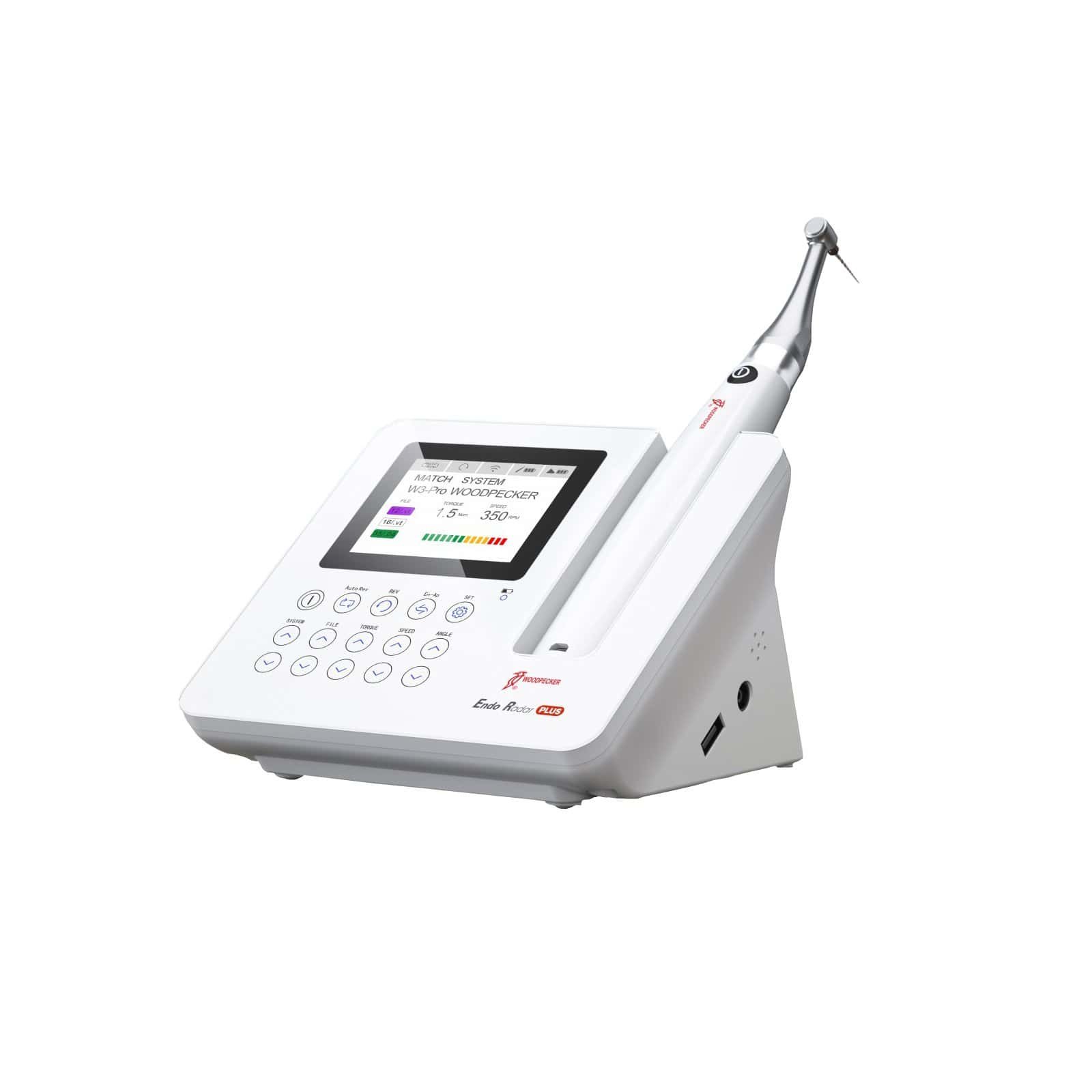

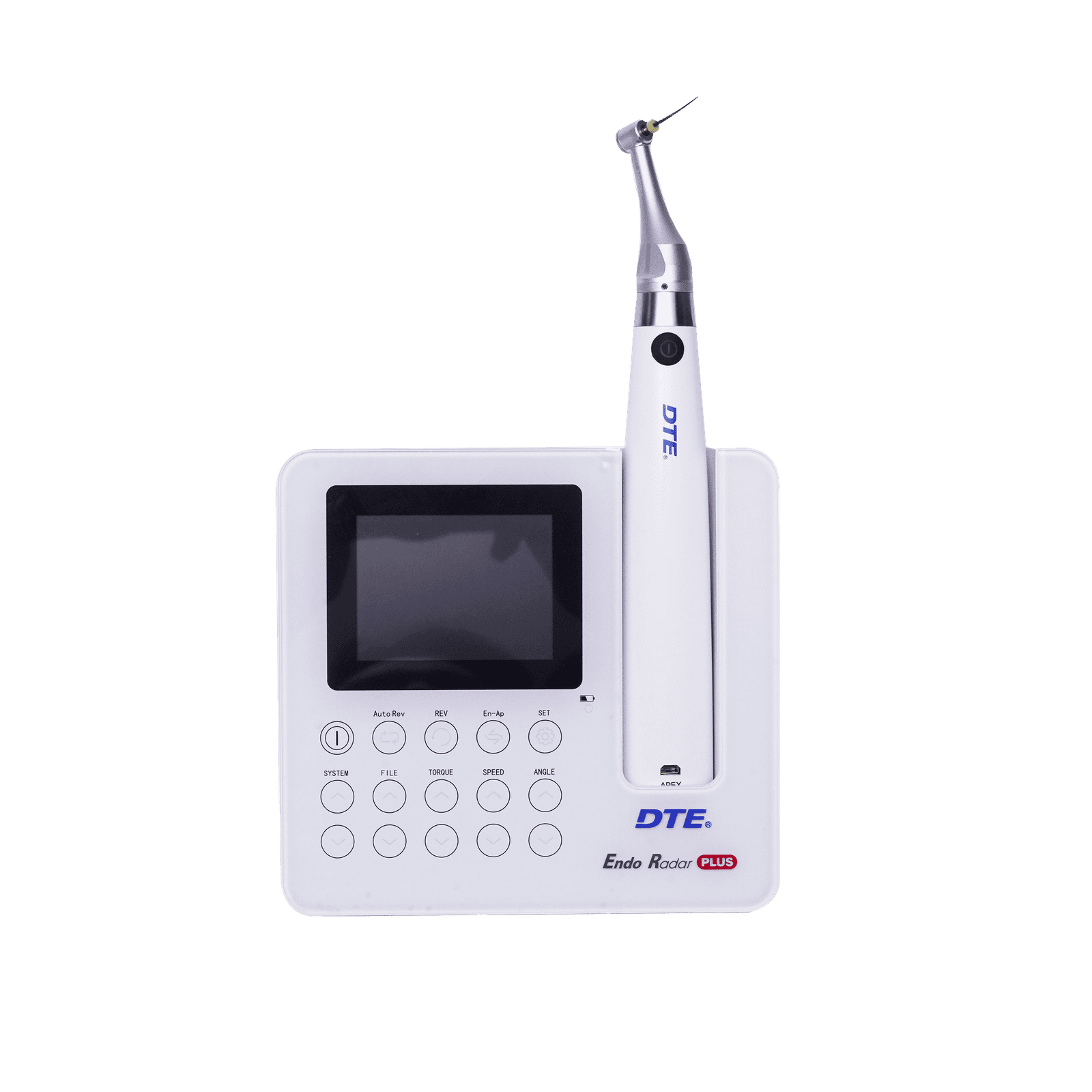

Woodpecker Endo Radar Plus/Pro Brushless Endo Motor

Woodpecker Endo Radar Plus is a new-generation, desk-type brushless endodontic motor with an integrated apex locator, designed to deliver a superior and efficient root canal treatment experience. By combining endo motor and apex locator functions into one compact unit, it saves both clinical space and chairside time.

The motor and apex locator can be used independently or simultaneously (En-Ap mode) with a single click, allowing clinicians to perform working length determination and canal shaping seamlessly. Featuring a cordless handpiece, wireless charging, and intelligent control, Endo Radar Plus eliminates the need for multiple devices while enhancing precision, safety, and comfort for both dentist and patient.

Features

• High-performance brushless endo motor: Super high torque, high speed, fast response, accurate output, and stable performance for efficient and safe canal preparation
• Adjustable reciprocating angles: Range from 20° to 340°, adjustable in 10° increments for precise control and reduced risk of instrument fracture
• Smooth and quiet operation: Low noise and minimal vibration ensure comfort for both operator and patient

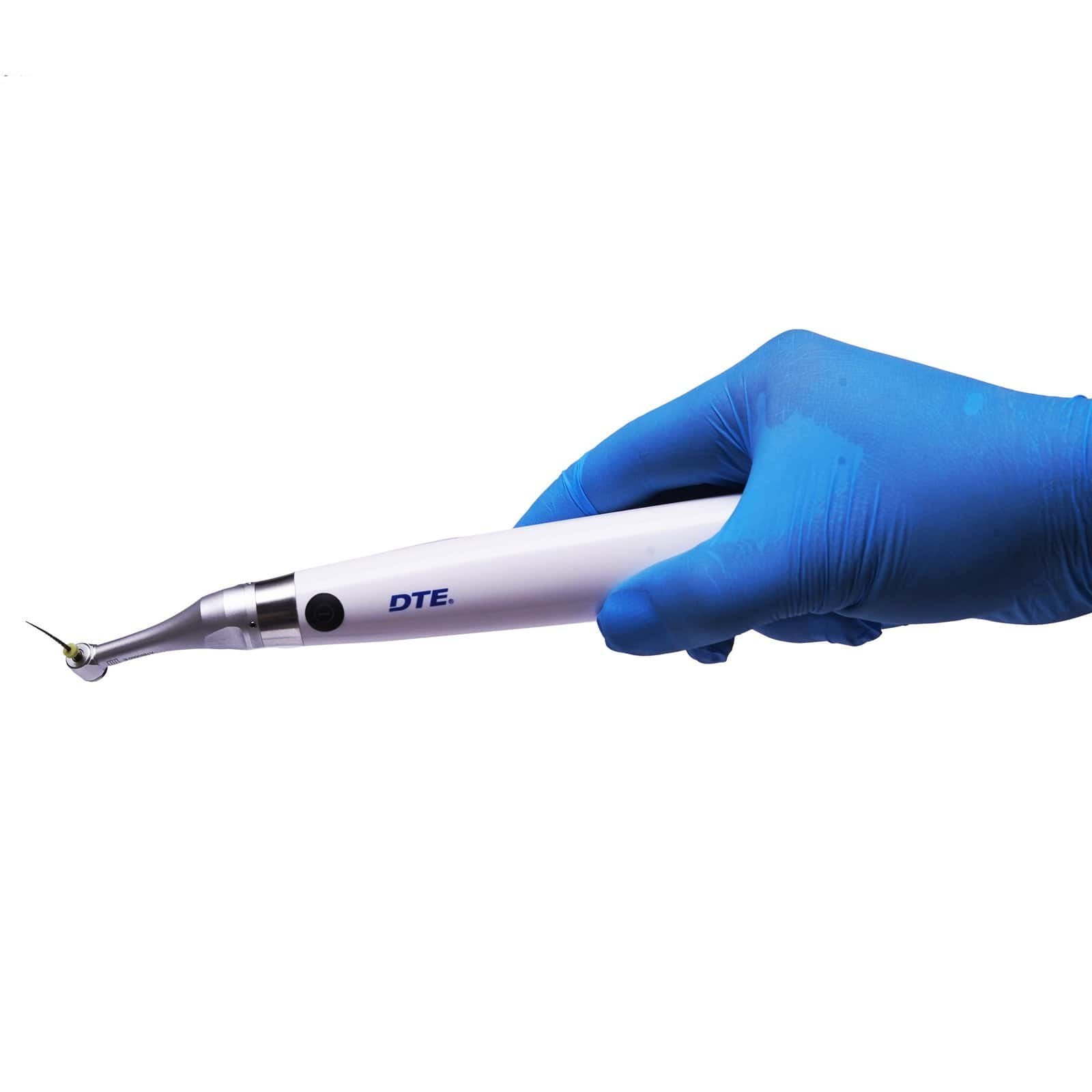

• Wireless connection: Cordless, lightweight handpiece controlled wirelessly for unrestricted and flexible operation
• Full-touch HD LCD display: Intuitive touch panel that is easy to clean, illuminated for clear visibility, and provides real-time information feedback
• Wireless charging: Handpiece charges wirelessly by placing it on the main unit; no adapter required
• Large-capacity battery: Built-in 2000 mAh rechargeable lithium battery for long operating time
• Built-in apex locator: Integrated length determination with real-time file position display for safer and more efficient endodontic treatment
• Auto start / auto stop: Motor automatically starts when the file enters the canal and stops when it exits
• Apical control safety: Automatically stops or reverses rotation when the file reaches the apical stop to prevent perforation

Technical Specifications

• Speed: 100 – 1200 rpm
• Torque: 0.4 – 5.0 N·cm
• Battery (handpiece): 3.7 V / 2000 mAh
• Battery (base): 11.1 V / 2600 mAh
• Dimensions: 240 × 180 × 130 mm
• Power input: ~100 – 240 V, 50/60 Hz, 800 mA
• Power output: 15.0 V – 1.6 A

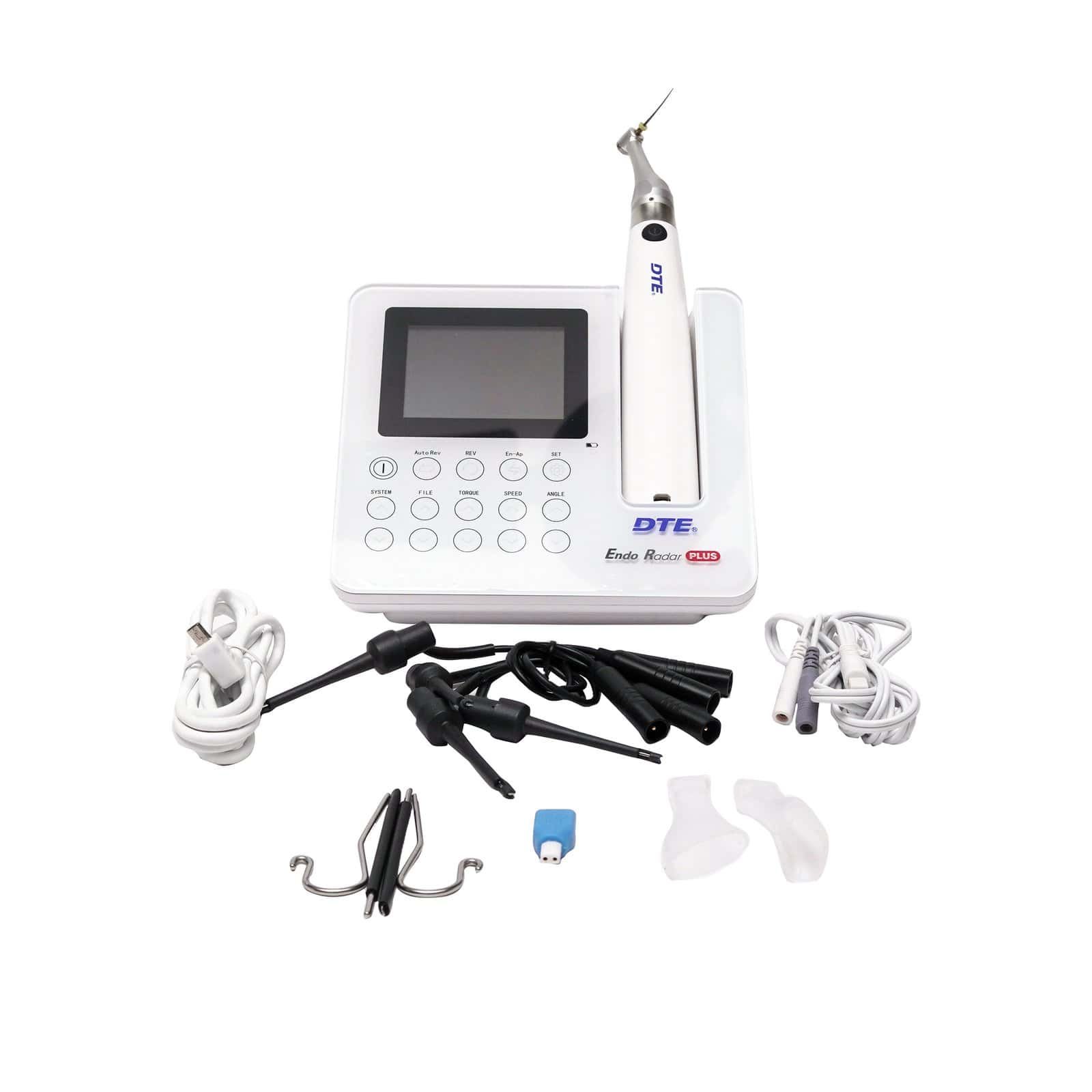

Packaging

• 1 × Main Unit (with integrated Apex Locator)
• 1 × DTE Motor Handpiece
• 1 × Contra Angle
• 1 × Power Adaptor
• 1 × USB Wire
• 1 × Lubricator
• 1 × Measuring Wire
• 4 × File Clips
• 2 × Lip Hooks
• 2 × Touch Probes
• 2 × Silicone Covers
• 2 × O-Rings
• Instruction Manual

Note – Endo radar Plus has been discontinued by the company . So Endo Radar Pro will be Sent
