Yuwell YU300 Oxygen Concentrator

The Yuwell YU300 Oxygen Concentrator is a compact, table-top oxygen generator designed for general home use. It delivers oxygen at concentrations ranging from 30%–90% depending on the selected flow rate between 1–5 LPM.

The unit is suitable for relaxation and recovery from fatigue or exposure to polluted environments. Its portable design, low operating noise, and integrated humidifier make it convenient for daily use.

Features

• Provides oxygen concentration of 30%–90% based on flow rate (1–5 LPM)
• Built-in compact humidifier
• Timer function up to 30 minutes
• Operating noise less than 43 dB
• Net weight: 7.5 kg
• Durable safety plastic shell
• Stable performance with continuous operation capability
• Compact and portable design
• Automatic alarm in case of malfunction
• Filter cleaning reminder approximately every 100 hours

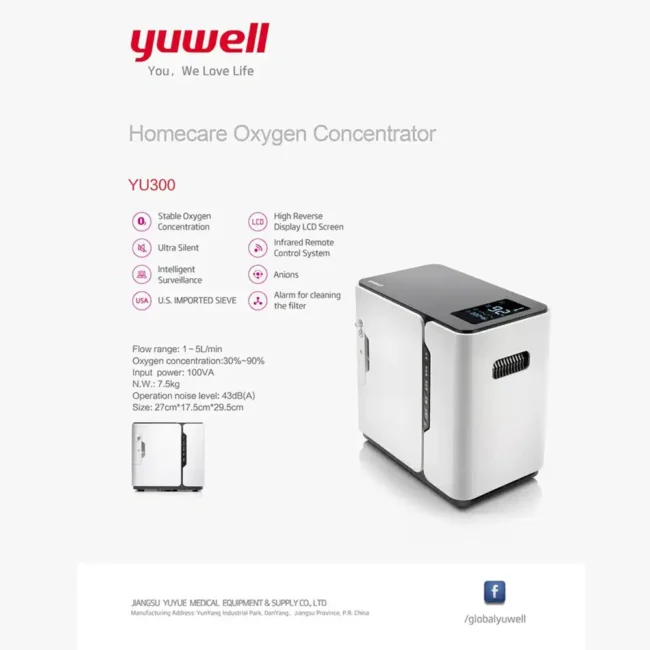

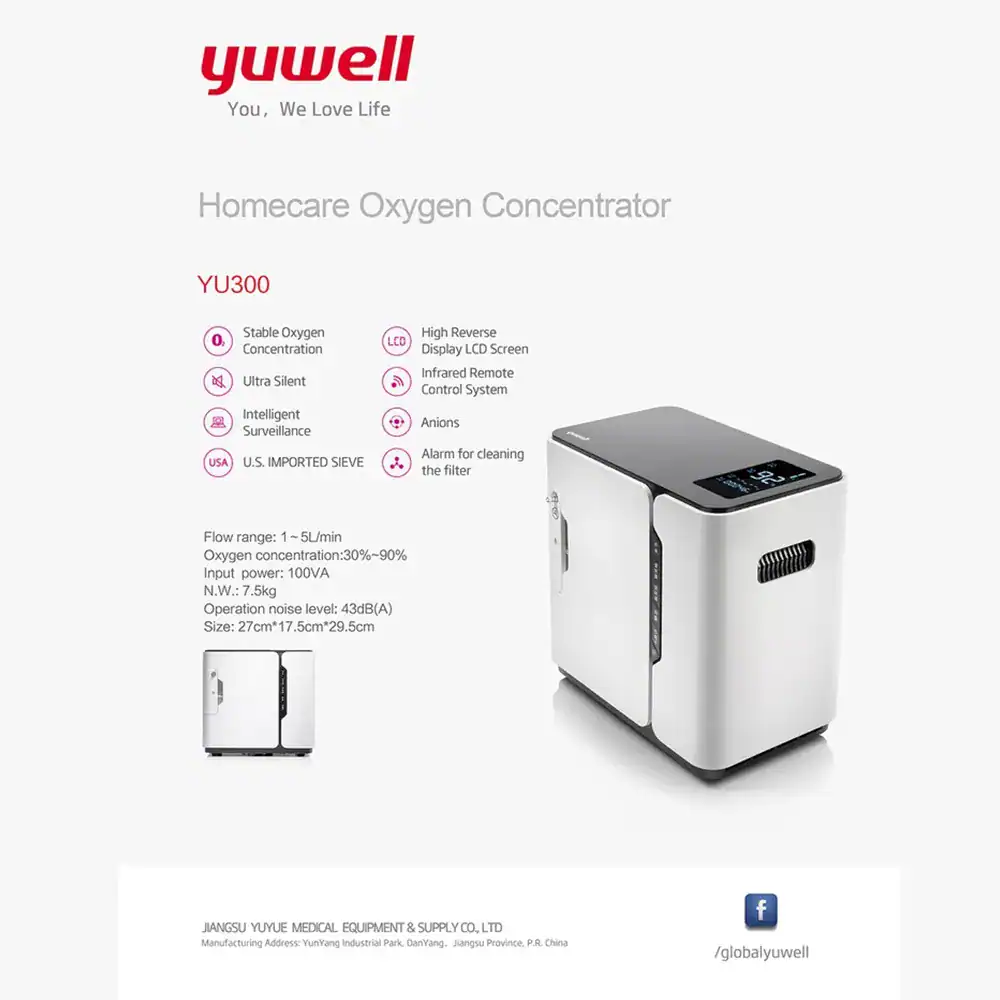

Key Specifications

• Power: AC 220V @ 50 Hz, 100 VA
• Flow Range: 1–5 LPM
• Oxygen Concentration: 30%–90%
• Operating Noise: 43 dB
• Net Weight: 7.5 kg

Directions for Use

• Press the “Flow Rate” button on the control panel to set the required oxygen flow; the display shows flow rate and oxygen concentration
• Connect the nasal oxygen cannula to the humidifier oxygen outlet and position it on the patient

Time Setting

• Timer can be set from 10–120 minutes
• LCD display showing “–” indicates continuous operation
• Press “+” to increase runtime by 10 minutes (hold for continuous increase)
• Press “–” to decrease runtime by 10 minutes (hold for continuous decrease)
• The unit shuts down automatically when the timer reaches “0”

Anions Function

• Press the “Anion” button on the control panel to activate anion generation

Turning Off

• Press the power switch on the control panel to stop oxygen inhalation
• Remove the nasal cannula from the oxygen outlet
• Switch off the power and disconnect from the power source

Packaging

• 1 × Oxygen Concentrator Unit
• 1 × Power Cable
• 1 × Nasal Suction Tube
• 1 × Remote Control
• 2 × Fuses
• 1 × Filter Sponge
• 1 × Earphone-Type Nasal Cannula
