Woodpecker i Scan 4K Image Plate Scanner Dental
$5,000.00
đŸ‘€ 33 people are viewing this right now
đŸ”¥ Selling fast! 10 people have this in their cart
đŸ”¥ 10 products sold in last 13 hours

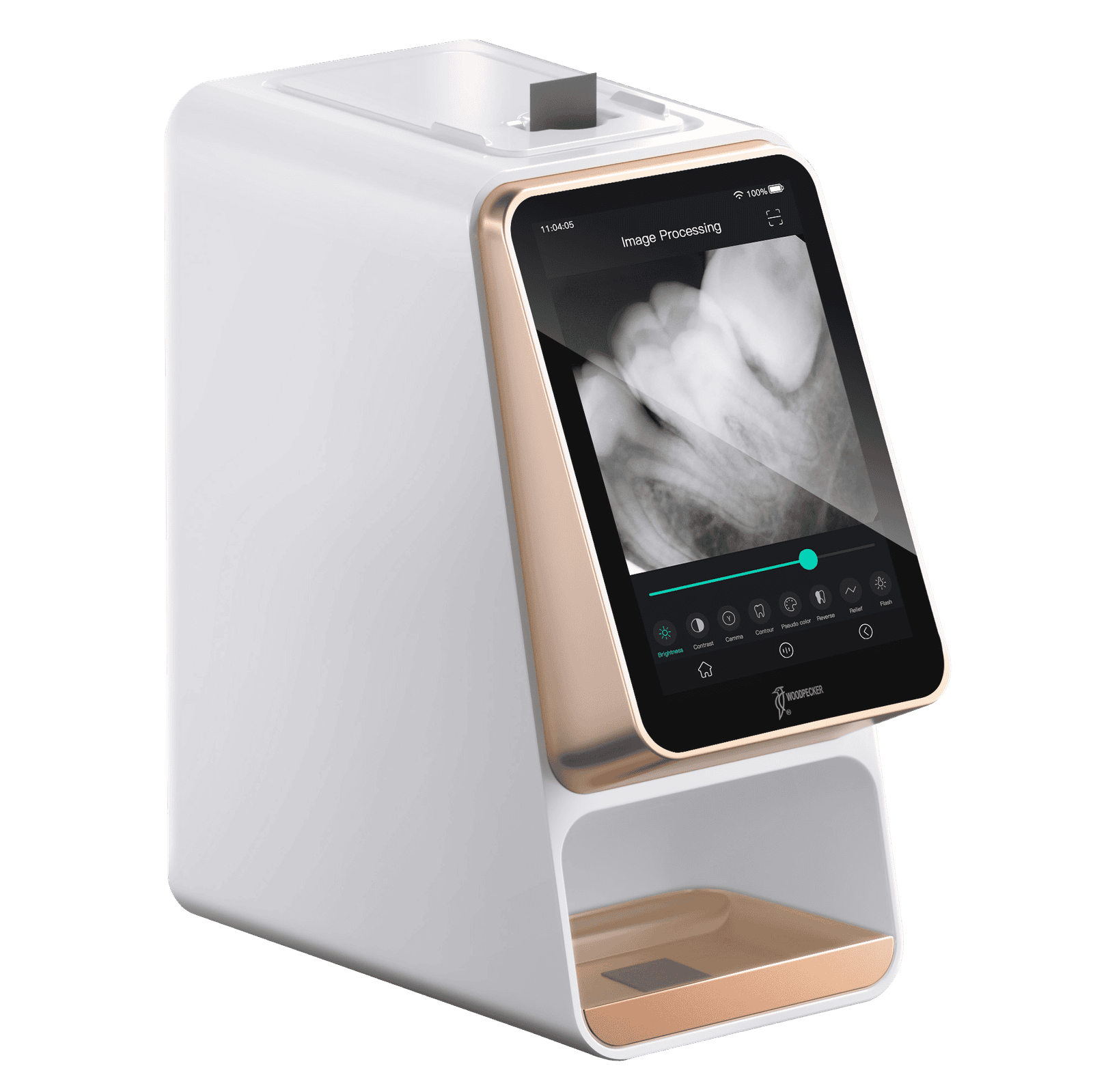

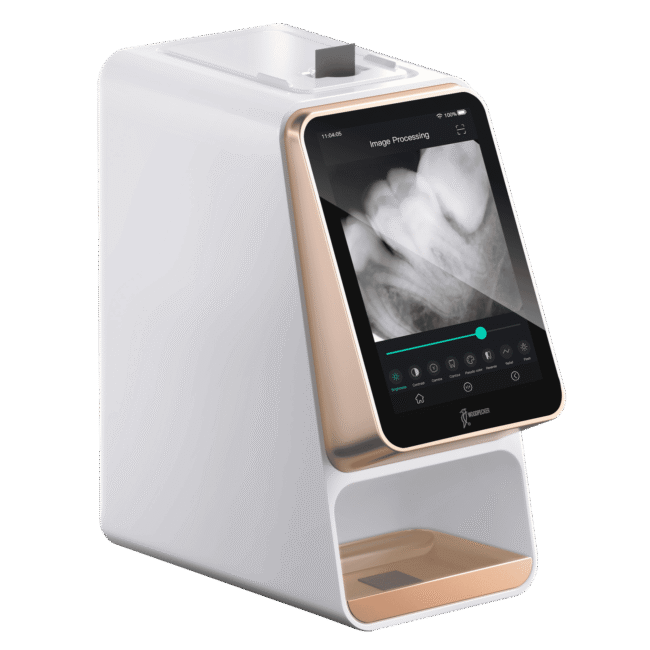

Woodpecker iScan 4K Dental Image Plate Scanner
Woodpecker iScan 4K is a compact, powerful dental image plate scanner designed for true chairside workflow. Its space-saving design allows installation directly in the treatment room, enabling dentists to take X-rays and scan images immediately at the chair without transferring plates or patients.
With an ultra-clear 4K image output, high-speed scanning, and a tablet-like touch interface, iScan 4K delivers fast, accurate, and user-friendly digital radiography for modern dental practices.
Primary Technical Parameters
- Power adapter input: 100–240 V, 50/60 Hz, 1.1 A
- Power adapter output: DC 15 V, 3.2 A
- IP imaging plate sizes supported: 0, 1, 2, 3
- Threshold contrast: 4 holes (1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm distinguishable)
- Image uniformity: < 2%
Effective Imaging Area
- Size 0: 21 Ă— 32 mm
- Size 1: 23 Ă— 39 mm
- Size 2: 30 Ă— 40 mm
- Size 3: 26 Ă— 53 mm
Laser Safety & Compliance
- Class I laser product
- Complies with EN / IEC 60825-1:2014
- Medical Devices Directive: 93/42/EEC
- Max laser output: 28 mW
- Wavelength: 651–665 nm
Scanning Speed
- Fast scan: 7 seconds
- High-precision scan: 10 seconds
- Ultra-high precision scan: 15 seconds
Operating Environment
- Temperature: 5°C – 40°C
- Relative humidity: 30% – 75%
- Atmospheric pressure: 70 kPa – 106 kPa
- Weight: 4.5 kg
Features
- True chairside solution – no computer or internet required in chair mode
- High-resolution capacitive touch screen
- Tablet-like interface for scanning, image processing, and data management
- Ultra-clear 4K image quality
- Powerful 8-core CPU processor
- 5G wireless communication
- Fully automated workflow (auto opening, plate size recognition, scanning, deleting, and voice prompts)
- Ultra-thin, flexible intraoral imaging plates (4 sizes)
- Removable input cover and disc tray
- Flexible, compact, and modern design
Packaging
- Main iScan Unit Ă— 1
- Power Lead Ă— 1
- IP Imaging Plate #0 Ă— 1
- IP Imaging Plate #1 Ă— 1
- IP Imaging Plate #2 Ă— 2
- Protective Barrier Envelopes (#0, #1, #2)
- Protective Card for IP Plate #0 Ă— 1
- Protective Card for IP Plate #1 Ă— 1
- Protective Card for IP Plate #2 Ă— 2
- Plate Storage Case with Clear Lid
- Lockable Metal Storage Case for iScan Unit
- USB Software
- Wireless Dual Band Adapter with Free Driver
- Instruction Manual
