Shofu Crown & Bridge Preparation Kit

Shofu Crown & Bridge Preparation Kit

The Shofu Crown & Bridge Preparation Kit is designed to deliver speedy, simple, and accurate tooth preparation for a wide range of crown and bridge restorations, veneers, and onlays. The kit enables precise depth control, efficient reduction, and safe finishing—especially in subgingival areas—while preserving tooth structure.

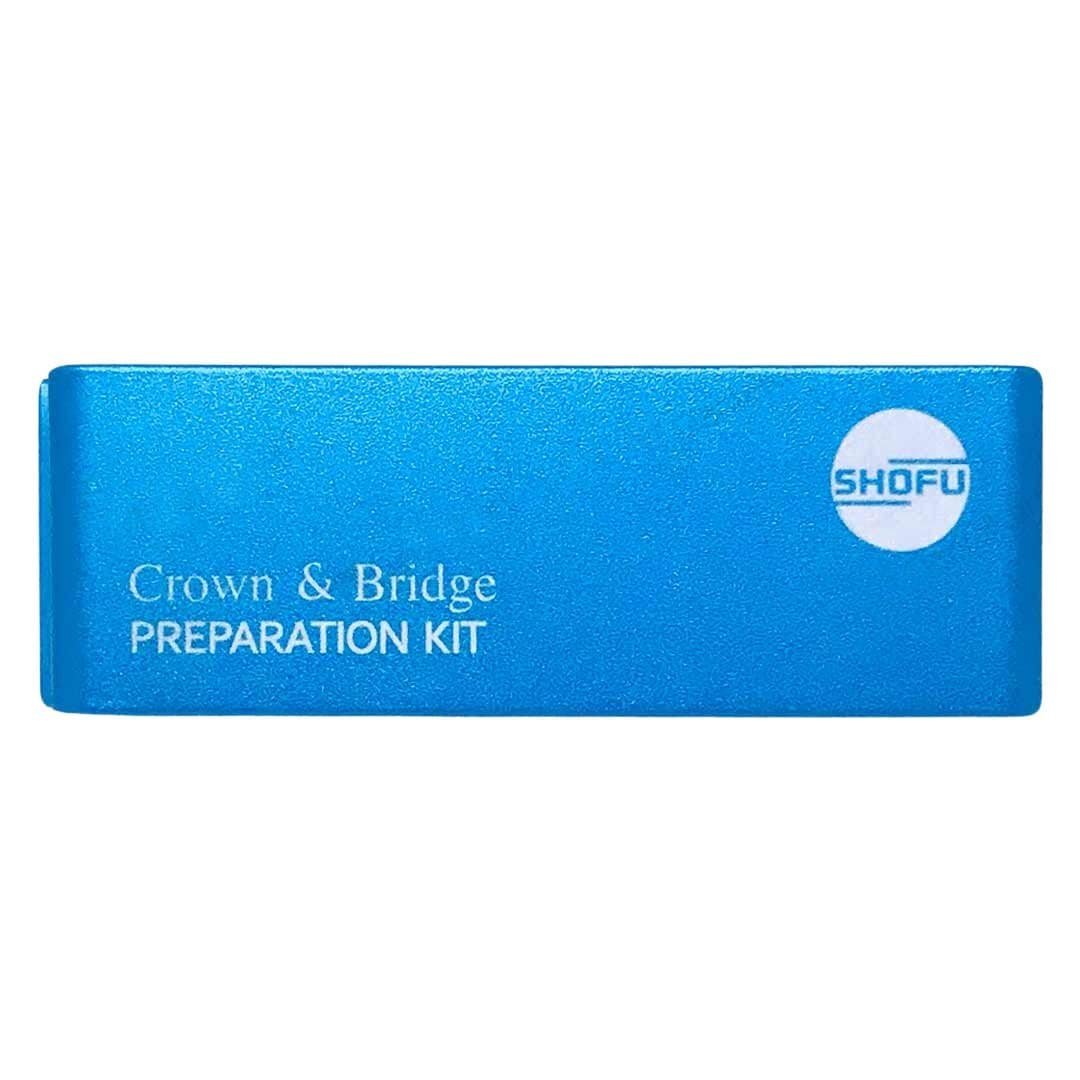

Specially designed depth-cutting diamond points allow easy and accurate depth orientation grooves, while the inclusion of tissue-protective end-cutting burs ensures safe shoulder preparation and finishing under gingival margins without injuring soft tissue. All points are hygienically organized in an autoclavable aluminum bur block for convenient sterilization and replacement.

Diamond Point Applications

Tapered Flat-Ended Diamond Points

• For crown & bridge and metal inlay preparation

Tapered Round-Ended Diamond Points

• For crown & bridge preparation with a heavy chamfer

Tapered Ellipse

• For crown & bridge preparation with a light chamfer
• Superfine grit for finishing restorative materials

Tissue-Protective End-Cutting Burs

• 1.0 mm depth for anterior tooth and all-ceramic crown preparation
• Allows shoulder preparation and subgingival finishing without soft tissue injury

Round Inverted Cone

• For buccal, palatal, and lingual reduction during crown & bridge preparation

Double Cone

• For occlusal reduction during crown & bridge preparation

Depth Cutting Diamond Points

• For precise depth orientation grooves

Features

• Precise depth orientation with specially designed depth-cutting diamond points
• Includes 2 tissue-protective end-cutting burs for safe subgingival finishing
• Autoclavable aluminum bur block for hygienic organization
• 14 specially selected FG diamond points
• Available in three grits:
  • Regular (no marking on shank)
  • Fine (red band on shank)
  • Superfine (yellow band on shank)

Technical Specifications

Tapered Flat-Ended Diamond Points

• Regular Grit: #201, #101
• Superfine Grit: #SF201, #SF101

Tapered Round-Ended Diamond Points

• Regular Grit: #102R
• Superfine Grit: #SF102R

Tapered Ellipse

• Regular Grit: #104R
• Superfine Grit: #SF104R

Tissue-Protective End-Cutting

• Fine Grit: #F414SS, #F414S

Round Inverted Cone

• Regular Grit: #265R
• Superfine Grit: #SF265R

Double Cone

• Regular Grit: #148

Depth Cutting Diamond Points

• Regular Grit: #122

Maximum Recommended Speeds

• Less than 450,000 rpm: #201, #SF201
• Less than 300,000 rpm: #101, #102R, #104R, #265R, #F102R, #F414SS, #F414S, #SF101, #SF104R, #SF265R
• Less than 160,000 rpm: #148
• Less than 120,000 rpm: #122

Packaging

• Kit of 14 burs
• Diamond Points FG × 14 in Regular, Fine, and Superfine grits
• Regular grit: #201, #101, #102R, #104R, #265R, #148, #122
  Fine grit: #F102R, #F414SS, #F414S
  Superfine grit: #SF201, #SF101, #SF104R, #SF265R
